1658537-3
Manufacturer:
TE Connectivity
Mfr.Part #:
1658537-3
Datasheet:
Description:

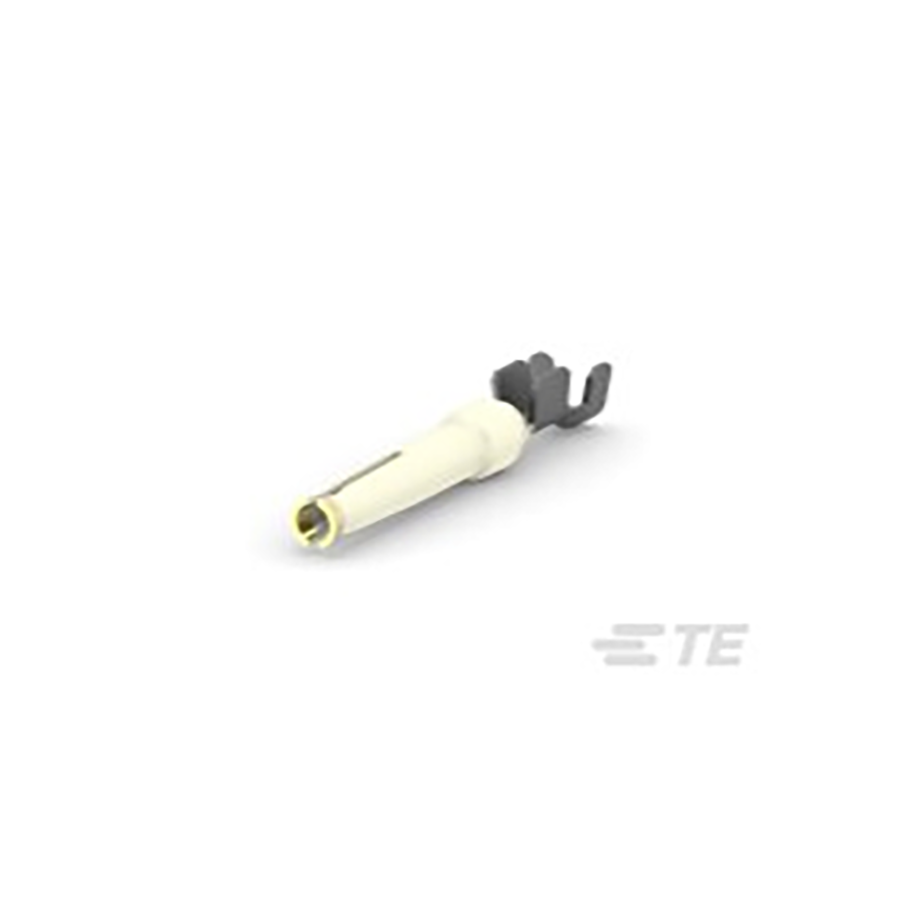

D-Sub Connectors Cable Stamped Crimp Female
| Parameter | Value |
|---|---|
| Length | 14.1 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Material | Bronze |
| Packaging | Reel |
| Depth | 2.41 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Type | Stamped |
| Number of Terminals | 1 |
| Max Current Rating | 2 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 24 AWG to 20 AWG |
| Contact Type | Crimp |
| Number of Positions | |
| Number of Rows | |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Contact Style | Crimp |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 24 AWG |
| Plating | Gold |
| Insulation Diameter | 1.524 mm |
| Contact Gender | Female |
| Shell Material | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| IP Rating(Ingress Protection) | |
| Termination Style | Crimp |
Stock: 37080
Distributors
pcbx
pcbxUnit Price$0.61238
Ext.Price$0.61238
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.61238 | $0.61238 |
| 10 | $0.30619 | $3.06190 |
| 50 | $0.23553 | $11.77650 |
| 100 | $0.18118 | $18.11800 |
| 500 | $0.13937 | $69.68500 |
| 1000 | $0.10721 | $107.21000 |
| 3000 | $0.08247 | $247.41000 |
| 5000 | $0.06344 | $317.20000 |
| 10000 | $0.06344 | $634.40000 |
| 30000 | $0.06036 | $1810.80000 |
| 50000 | $0.05907 | $2953.50000 |
